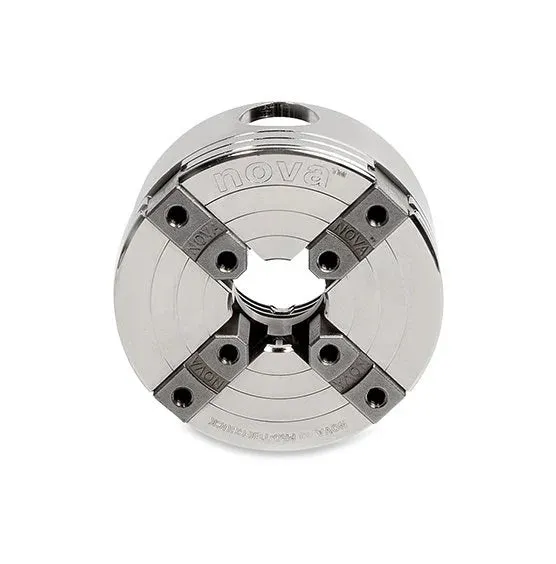

NOVA LITE G3 Chuck (Insert Version) w/50mm (2") Jaws

The NOVA LITE G3 Insert version chuck is light weight, and with less overhang which is perfect for smaller lathe spindles. The small 1.79″ body length delivers less overhang from the spindle than the larger geared Chucks 4 Jaw self centering geared chuck, suitable for smaller lathes with up to 14″ swing. Fully featured chuck including Auto Stop, Copper composite Jaw Slides, Comfortable Sliding T Bar Handle and 2″ (50mm) Jaws. Powerful Tuff Lock gearing with precise, hardened action delivers incredibly smooth strength for a solid, vibration free performance. Insert Type Chuck, requires additional insert adaptor to fit to lathe (sold separately).

Precision machined from single solid steel billet for maximum performance.
• High Tech Precision Composite Jaw Slides.
• Special NOVA Woodturning Dovetail Profile on Jaws.
• Auto Safety Stop Feature. Jaw slides can’t protrude past the chuck body.
• Common Insert/Adaptor Fitting – compatible across all NOVA chucks.
• Small, Compact Design. Minimizes load on small spindles and bearings.

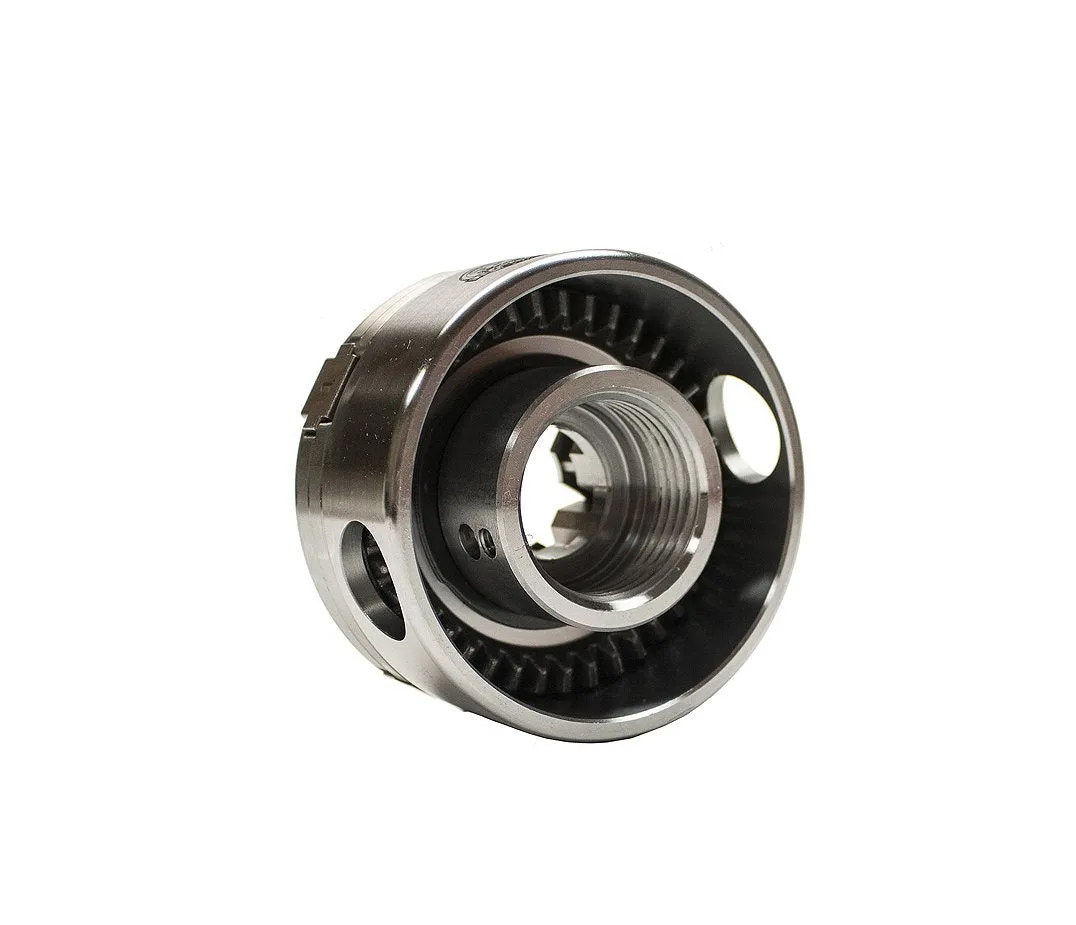

• Open back for easy cleaning.
• Powerful Geared Grip with Tuff Lock™ Technology. Precise, hardened geared action delivers incredible smooth strength. Solid, vibration free.
• Single Handed Operation. Chuck key has fast, positive location, easy and comfortable to use. More time spent turning and less time spent preparing.
• Able to take most NOVA accessories jaws.*
•Comprehensive Instructions.

*The larger accessory jaws in the NOVA chuck range are not recommended for use on the NOVA G3 Chuck. For more information, consult your NOVA Accessory Jaw Manual. Only NOVA Chucks give you the same jaw fixing system and same insert/adaptor system across all chuck models.

SPECIFICATIONS:
• Recommended for power workholding on lathes up to 400mm/14” diameter swing*
• Up to 350mm/14″ diameter bowls using 50mm/2” Jaws (supplied with chuck)
• Up to 50mm/2″ length spigots (using 50mm/2” Jaws (supplied with chuck)
• Full Packaged Weight = 1.4kgs/3lbs.

*If your lathe is less than 12” diameter swing, please see the . If your lathe has more than 16” diameter swing, please see the or the .

WARRANTY: 6 Year Jaws 2 Year Chuck and Accessories Full Replacement*

Safety Advisory!
Only use authentic NOVA accessories on your NOVA chuck. Using non-genuine NOVA and copies of accessories could lead to operation and safety issues and will void our warranty. NOVA accessories are designed for use only on NOVA Chucks. Do not use on any other chuck.

Warranty: 6 Year Jaws 2 Year Chuck and Accessories Full Replacement*

*Warranty covers manufacture defects only
